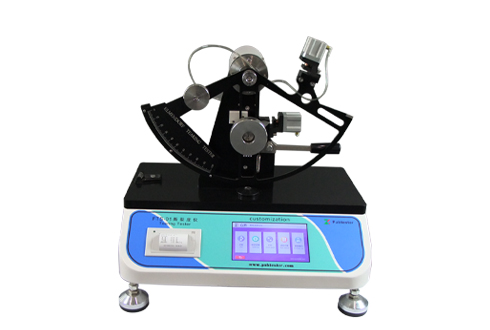

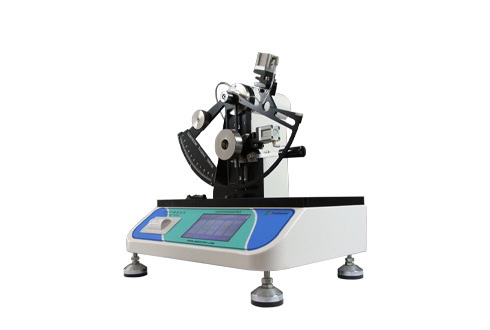

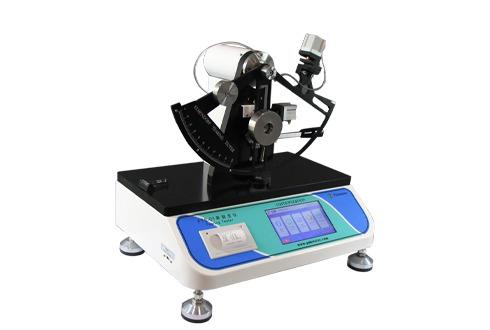

FTS-01 Elmendorf Tearing Tester is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens.

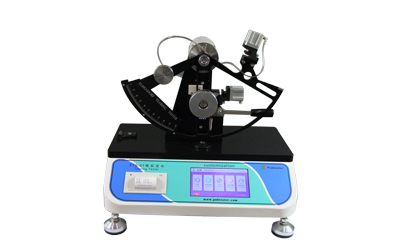

Elmendorf Tearing Tester
Technical Features
-Controlled by computer with automatic and electronic measurement which is convenient for the operation
-Pneumatic specimen clamping and automatic release of pendulum could avoid the system error effectively
-Equipped with pendulums of multiple capacities, maximum up to 6400gf
-Multiple unit display of experimental results
-Computer assisted horizontal adjustment system could maintain the instrument optimum status
-Equipped with RS232 port which is convenient to the data transmission and external connection
Test Principle
Lift the pendulum up to a certain height to give it an initial potential energy. The pendulum tears the specimen while swinging down. Computer calculates the decreased energy caused by tearing to obtain the required force for tearing.
Applications
Basic Applications | Plastic films and sheets |
Paper and Paperboard |
Textiles |
Extended Applications | Heavy Package Bags |
Rubber Gloves |
Wrapping Films |
Technical Specifications
Specifications | FTS-01 |
Pendulum Capacity | 200 gf, 400 gf, 800 gf, 1600 gf, 3200 gf, 6400 gf |
Sample Holder | Pneumatic |
Pendulum Release | Pneumatic |
Gas Supply Pressure | 0.6MPa (Not in Supply Scope) |
Port Size | Φ4 mm PU Tubing |
Instrument Dimension | 480 mm (L) × 380 mm (W) × 560 mm (H) |
Power Supply | AC 220V 50Hz / AC 120V 60HZ |
Net Weight | 24.5 kg (Basic Pendulum of 200 gf) |
Standards
ISO 6383-1-1983, ISO 6383-2-1983, ISO 1974, GB/T16578.2-2009, GB/T 455, ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414
Configuration
Standard Configuration：Instrument, One Basic Pendulum(200gf default), One Check Weight
Optional Parts：
Basic Pendulum: 200 gf, 1600 gf
Augmenting Weight: 400 gf, 800 gf,3200 gf,6400 gf
Check Weight: 200 gf,400 gf, 800 gf, 1600 gf,3200 gf, 6400 gf
Computer, Software, Two Cutters (Constant-Radius, rectangle)
Note: 1.The gas supply port of the instrument is Φ4 mm PU Tubing;
2. Customers will need to prepare for gas supply.
