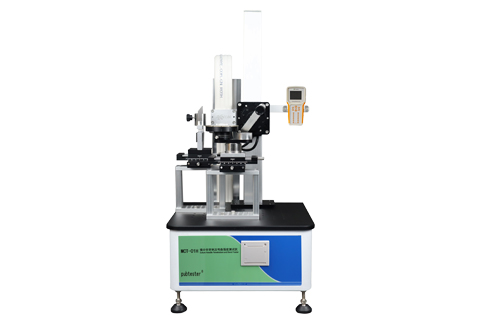

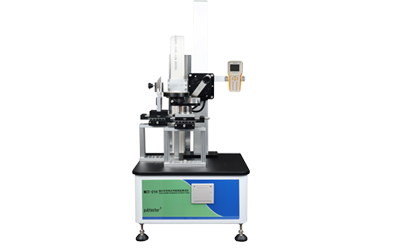

MCT-01H Suture Needle Penetration and Bend Tester
MCT-01H Suture Needle Penetration and Bend Tester, complies with ASTM F3014 and ASTM F1874. It is suitable for measuring the penetration and bend force of curved and straight suture needles.
Suture Needle Penetration and Bend Tester
Technical Features
Ø The 7-inch color touch screen
Ø 12 work stations for penetration fixture, convenient and efficient
Ø Penetration and bend Two fixtures can be replaced freely
Ø With professional software, complies with ASTM F3014 and ASTM F1874
Ø Various suture needles available, including 1/4 circle, 3/8 circle, 1/2 circle, 5/8 circle, straight and J curved.
Ø Rotational angle and speed is settable as required
Ø Equipped with portable control box, can be freely raised, lowered and angle adjusted
Applications
Basic Applications | Surgical Suture Needle (1/4 circle, 3/8 circle, 1/2 circle, 5/8 circle, straight and J curved, etc.) |
Technical Specifications
Specifications | MCT-01H |
Test Item | Penetration, Bend test |
Needle Specifications | 1/4 circle, 3/8 circle, 1/2 circle, 5/8 circle, straight and J curved. (customized) |
Load Cell Capacity | 50N |
Accuracy | 0.1% FS |
Test Speed | Straight: 0-500mm/min (Stepless speed change) Curved: 0-360°/s settable |
Penetration Test | 12 work station |
Bend Test | Two test platform |
Power Supply | 220V/50Hz |
Standards
ASTM F3014, ASTM F1874
Configuration
Standard configuration: Instrument, touch screen, penetration fixture, bend fixture, portable control box, professional software, communication cable.
