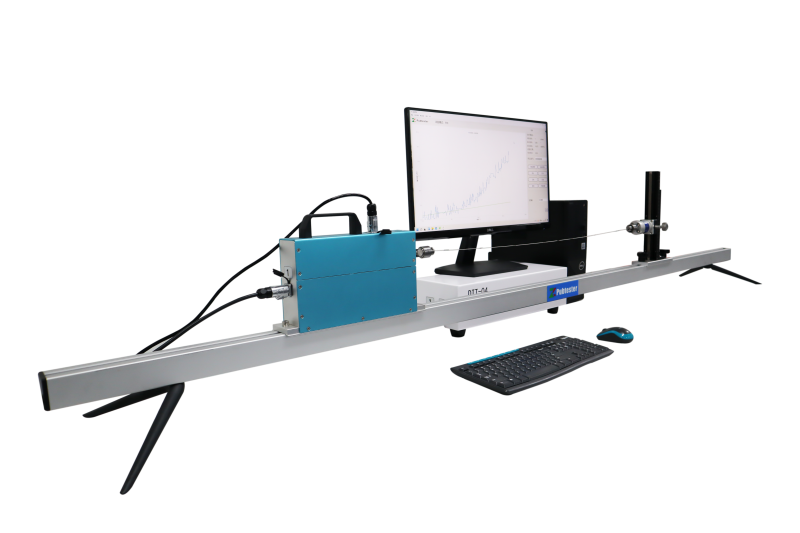

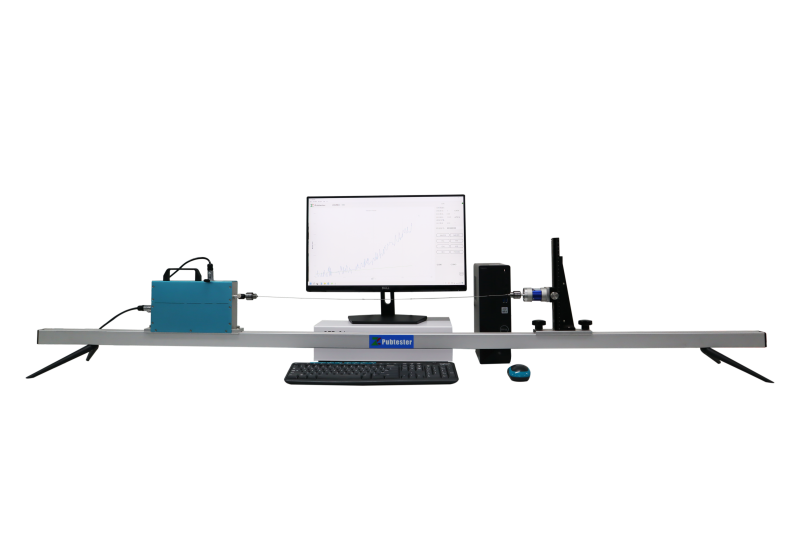

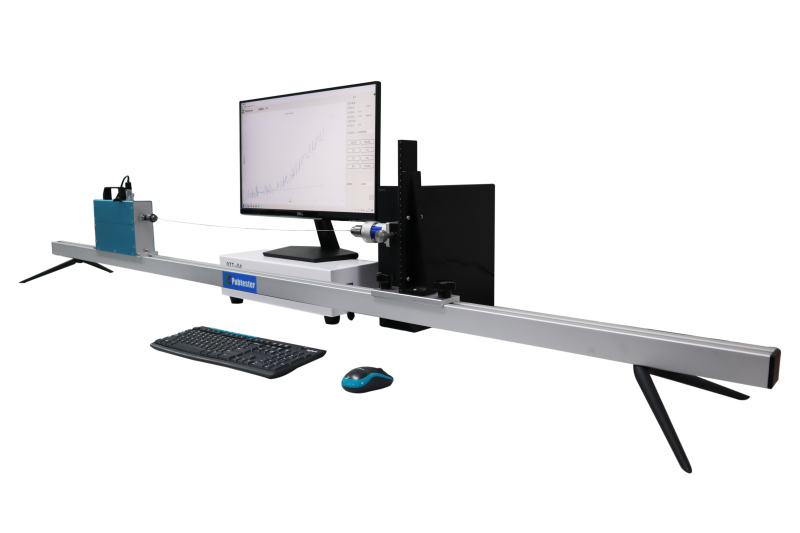

DTT-04 Torque Tester for Guidewires & Catheters
DTT-04 Torque tester is suitable to the determination of the constant torque, constant angle and torque to failure test at the welding points of intravascular guidewires and catheters.
Product Features
Professional technology
Specialized in the torque to failure and constant torque testing of guidewires and catheters
Ø Maintain the peak value automatically
Ø Intelligent configurations such as overload protection, automatic zeroing, power-off memory and fault prompts ensure the safety of user operations
Ø Equipped with professional computer software, real-time monitoring of curve changes, automatic data saving to local and printing paper reports
Ø Pubtester also provides professional customization services to meet the personalized needs of users in terms of fixtures, software, etc.
Ø Equipped with standard RS232 interface, which is convenient to PC connection and data transmission
Special features
Ø High torque test accuracy for testing small torque tests
Ø Equipped with a small-range torque sensor, in millinewton meters
Ø Multiple test modes: constant torque, constant angle and torsional strength
Ø Can perform proximal and distal torque and angle tests
Technical Specifications
Specifications | DTT-04 |
Test Range | 500mN·M (customizable) |
Accuracy | 0.5%FS |
Resolution | 0.01mN·M |
Clamping Range | 0.3-4 mm (Diameter) |
Statistical Quantity | 1～99999 |
Test Mode | Optional |
Dimensions | 2010mm(L)×400mm(W)×300 mm(H) |
Power Supply | AC220V50Hz/120V60Hzz |
Net Weight | 15Kg |
Test Principle
The sample is clamped on the fixed plate, the test mode is set by the software, and the torque value applied to the sample is collected through the sensor connected to the fixed plate to obtain the torque value of the sample.
Applications
Basic Applications | Extended Applications |
Interventional Guidewires | Intravascular Catheters | Bar | Other Tubes |
Standards
YY/T0663.2-2024, YY0807-2010, ASTM F 2394-2007
Configuration
Standard Configuration: Instrument, test fixture, software, communication cable.
