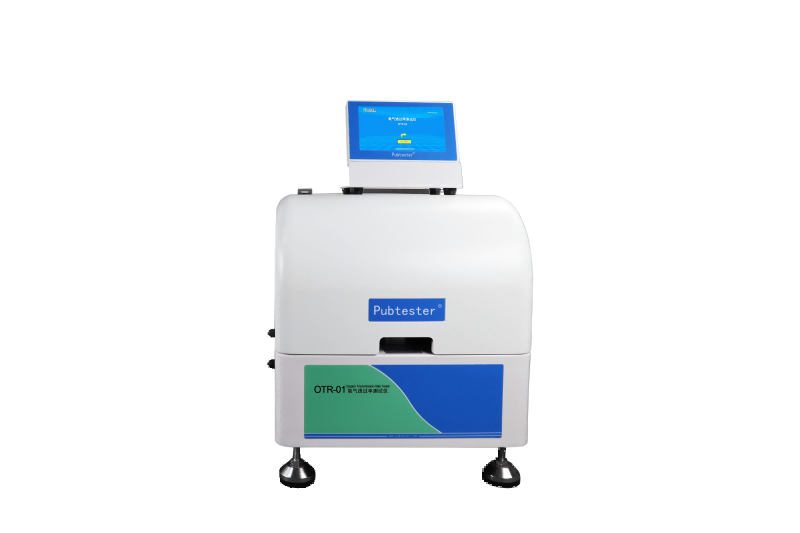

OTR-O1 Oxygen Transmission Rate Tester
(Coulometric sensor method)
OTR-O1 Oxygen Transmission Rate Tester, also called oxygen permeability Tester is designed and manufactured based on the coulometric sensor method (as known as equal pressure method) and conforms to ASTM D3985. The instrument has a patented integrated single test permeation cells, high-precision sensors, and built-in dedicated computer control system, providing accurate temperature, humidity, flow rate adjustment and control, with high test sensitivity and excellent repeatability of test results. OTR-O1 is applicable to the determination of oxygen permeability of plastic films, sheeting, paper, and other packaging materials used in food, pharmaceutical, medical apparatus, consumer products, photovoltaic and electronic industries, etc.
Technical Features
High Precision Advantages
Ø Trace oxygen sensor, can measure oxygen content as low as ppb level; pA level micro current measurement, higher measurement accuracy
Ø Precise flow control, with professional piping system and flushing technology, effectively ensure the stability and cleanliness of the carrier gas
Ø Advanced sample installation anti-leakage technology to effectively ensure the overall sealing of the test chamber
Ø Equipped with patented non-fog humidifier, automatic and precise control of high humidity
Ø Semiconductor cold and hot bidirectional temperature control technology, which can increase or decrease temperature at will, with precise temperature control, making the system more stable;
Ø Core sensors and other components have multiple self-protection functions
Ø Short warm-up time, test conditions can reach the set requirements faster
Efficient and Intelligent
Ø Whole process monitoring, automatic recording, adjustable sampling rate, test process can be reproduced throughout
Ø Intelligent air-saving function can reduce the consumption of test gas
Ø Optional accessories extend the capability to testing containers
Ø The system is controlled by a microcomputer, equipped with a menu-type interface, which is convenient for users to quickly and intuitively view the test data and results
Test Principle
The pre-conditioned specimen is mounted between the upper and lower chambers at ambient atmospheric pressure. The upper chamber contains oxygen or air and the lower chamber is slowly purged by a stream of nitrogen. Due to the concentration difference between the two chambers, oxygen molecules permeate through the specimen into the nitrogen side and are taken to the coulometric sensor where proportional electrical signals are generated. The oxygen transmission rate is then obtained by analyzing the signals and calculating the volume of oxygen measured by the sensor.
Applications
Basic Application | Films | Plastic films, paper-plastic composite films, coextruded films, aluminized films, aluminum foils, aluminum foil composite films, glass fiber aluminum foil composite films and many others |
Sheeting | PP, PVC and PVDC sheets, metal foils, rubber pads, silicon wafers and other sheeting materials |
Packages | Plastic, rubber, paper, paper-plastic composite, glass and metal packages, e.g. Coke bottles, peanut oil packages, Tetra Pak materials, vacuum bags, metal three-piece cans, plastic packages for cosmetic, soft tubes for toothpaste, jelly and yogurt cups |
Extended Application | Closure Systems | Oxygen barrier property of various closure systems for bottles cartons and pouches |
Solar Back-Sheets | Oxygen permeability test of solar back-sheets |
Plastic Tubes | Oxygen permeability test of various sorts of tubes, e.g cosmetic tubes |
Blister Packs | Test oxygen transmission rate of the whole blister packs |
Automotive and Small Engine Fuel Tanks | Permeability of plastic fuel tanks |
Battery Plastic Shell | Oxygen transmission rate of battery plastic shell |
Technical Specifications
Specifications | OTR-O1 |
Test Range (film) | 0.01～6500 (cc/㎡.24h) (Container test accessories optional) |
Resolution | 0.001 |
Permeable Area | 50 cm2 (Customizable) |
Specimen Thickness | ≤3 mm |
Number of Specimens | 1 |
Number of Sensor | 1 |
Temperature Control Range | 15°C～55°C |
Temperature Accuracy | ±0.1℃ |
Carrier Gas | 99.999% High-purity Nitrogen (outside of supply scope) |
Carrier Gas Flow | 0～100 mL/min |
Carrier Gas Pressure | ≥0.2MPa |
Port Size | 1/8 inch metal tubing |
Instrument Dimension | 740mm (L)×415 mm (W)×430mm (H) |
Power Supply | AC 220V 50Hz |
Net Weight | 50Kg |
Standards
ASTM D3985, ASTM F2622, ASTM F1307, ASTM F1927, ISO 15105-2, JIS K7126-B, YBB 00082003, GB/T 19789
Configuration
Standard configuration: Instrument, Temperature control device, Sampler, Calibration film
Optional configuration: Container test accessories, Container test temperature and humidity controller
Note: Vacuum grease, Nitrogen and Oxygen are prepared by customer.
